Why Should You Choose Jaysis Oxygen Concentrator?
01
Product Flexibility
- Ease of maintenance
- Can be installed in existing medical gas pipelines
- Compact size compared to European products
- Space saving by eliminating the need for high-pressure vessel storage
02
Product Safety
- PSA Method (Pressure Swing Adsorption)

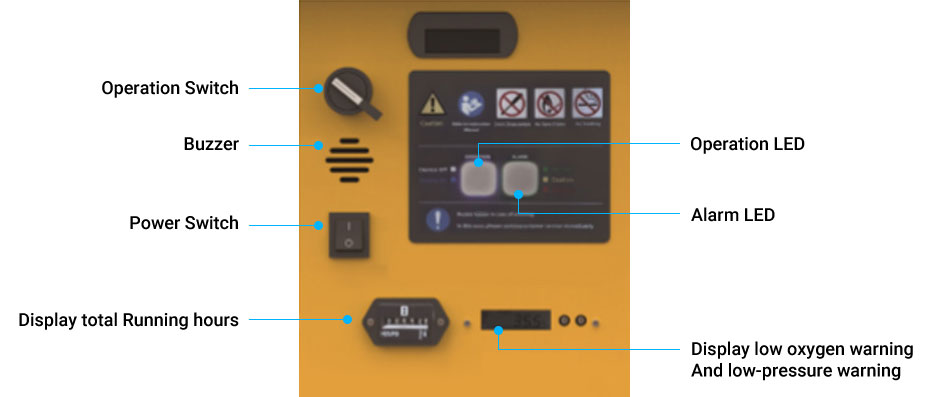

- Power failure alarm & Low pressure alarm function
- 5 types of condition detecting sensors in each unit.
- Self diagnosis and system management
- The product turns off automatically when the set pressure reaches 6.5 bar
03
Maintenance Differentiation
- Even if one unit fails, the equipment does not turn off.
04
Product Economics
- Excellent cost savings compared to normal liquid oxygen
- Saving maintenance costs by not using high-pressure cylinders
- Can reduce initial and operating cost
|
|
|
|---|---|---|
| Purity of Oxygen | 93±3% | 93±3% |
| Oxygen Supply Pressure | Max 6.5bar | Max 6.5bar |
| Oxygen Flow Rate | 30±3LPM | 60±3LPM |
| Input Voltage | 230 VAC/50Hz | 230 VAC/50Hz |
| Power Consumption | 2.15Kw±10% | 4.25Kw±10% |
| Noise | Max 70dB | Max 70dB |
| Dimensions | 480x600x1,550mm | 960x600x1,550mm |
| Weight | 130kg | 260kg |
| Oxygen supply a Day | 58kg | 115kg |

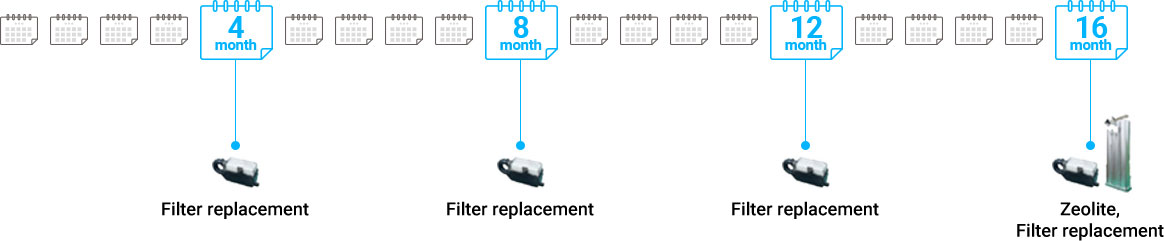

Guide of consumable part
| Filter Replacement Quantity | Zeolite Replacement Quantity | Filter Retail Price (per unit) | Zeolite Retail Price (per unit) | |
|---|---|---|---|---|
| 03Model-30LPM- | 3EA | 3EA | inquiry | inquiry |
| 06Model-60LPM- | 6EA | 6EA | inquiry | inquiry |

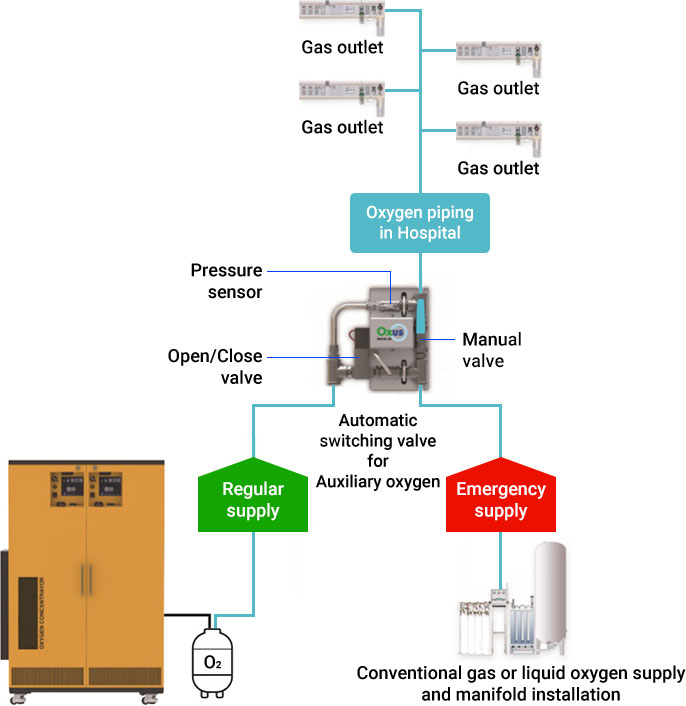

Medical oxygen supply system
As a system built to replace the continuous supply of liquefie and high-pressure oxygen to the central gas piping system used in medium-large hospitals, and nursing clinics medical.
Our oxygen supply system can continuously operate and supply oxygen to the central piping system for 24 hours, 365 days a year.
