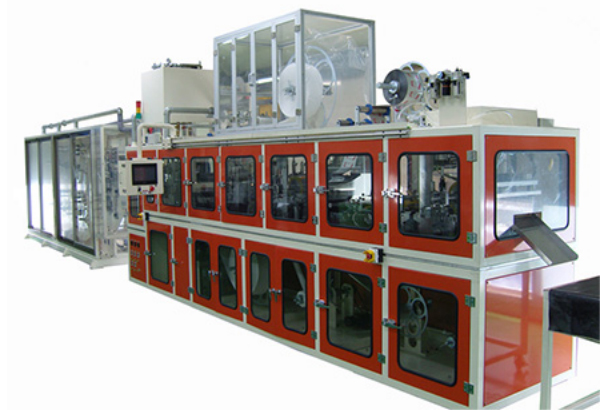

SPLINT Machine
Splint Machine Specification
| Product | Splint Manufacturing Machine (Fiber Glass / Polyester/ Non-woven Fabric) |
|---|---|
| Production Range | * Pre-cut Splint (Width : 2inch – 6inch / Length: Winch – 45inch) |
| * Roll Splint (Width: 2inch – 6inch / Length: 4.5 meter(5yds)》 | |
| Production Capacity | Max. 1,000m/10 hours |
| Packing Type | Aluminium Pouch Packing |
| Utility Consumption | Electricity: 50Kw except for air conditioning facilities |
| Air pressurer | Over 10Hp |
| Required Site | Raw Material Storage : 200 m² |
| Production Area: 200 m² | |
| Products Storage : 200 m² * Additional spaces for office, laboratory, etc. should be considered. | |
| Electricity Power | AC220V 60Hz, 30/,10kwh |
| Resin Feeding Type | Hose Line Pump |
| Work Space (cm) | 1800Wx150Lx270H(cm) |
| Pad Sealing Method | Ultrasonic sealing |
| Utility | Expecting Air(5-8kgf/㎠) |
| Minimum Cutting size | 30inch |
