RAK-U03M2E
Total production in one day :
Gas oxygen (As for 40L, 120bar): 9 cylinders
9
cylinders
cylinders

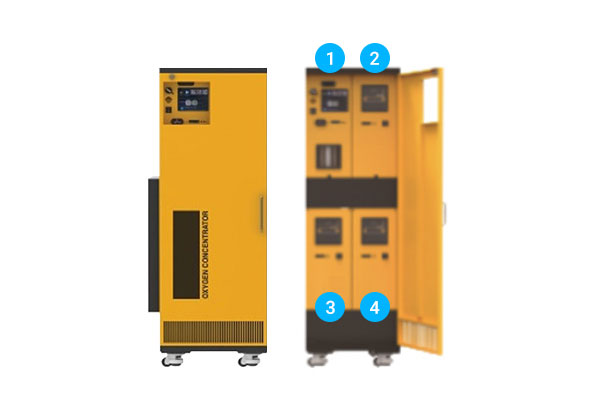

1 Control unit
Operate the device and display the status
2 3 4 Oxygen unit
Each unit produces oxygen
| Oxygen Flow | 30±3LPM |
|---|---|
| Oxygen Purity | 93±3% |
| Oxygen Pressure | Max 6.5bar |
| Voltage (Frequency) | 230V (50Hz) |
| Power Consumption | 2.15KW |
| Operating Environment | 0℃ ~ 40℃, 0% ~ 90%, 1090hPa ~ 800hPa |
| Noise Level | Max 70dB |
| Weight | 130kg |
| Dimension (WxDxH) | 480x600x1,550mm |
| Electrical protection type | Classi |
