RAK-U06M2E
Total production in one day :
Gas oxygen (As for 40L, 120bar) : 18 cylinders
9
cylinders
cylinders

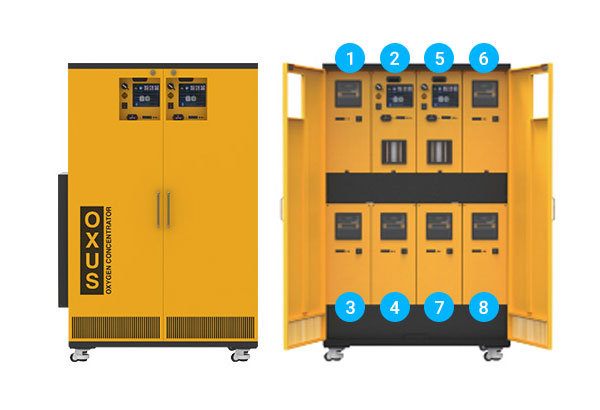

1 5 Control unit
Operate the device and
display the status
2 3 4 6 7 8 Oxygen unit
Each unit produces oxygen.
Units can be individually turned on/off depending on the amount of oxygen required.
| Oxygen Flow | 60±3LPM |
|---|---|
| Oxygen Purity | 93±3% |
| Oxygen Pressure | Max 6.5bar |
| Voltage (Frequency) | 230V (50Hz) |
| Power Consumption | 4.25KW |
| Operating Environment | 0℃ ~ 40℃, 0% ~ 90%, 1090hPa ~ 800hPa |
| Noise Level | Max 70dB |
| Weight | 260kg |
| Dimension (WxDxH) | 960x600x1,550mm |
| Electrical protection type | Classi |
